ASI
Model # 64696AC-00 (SKU 10-64696AC-00)

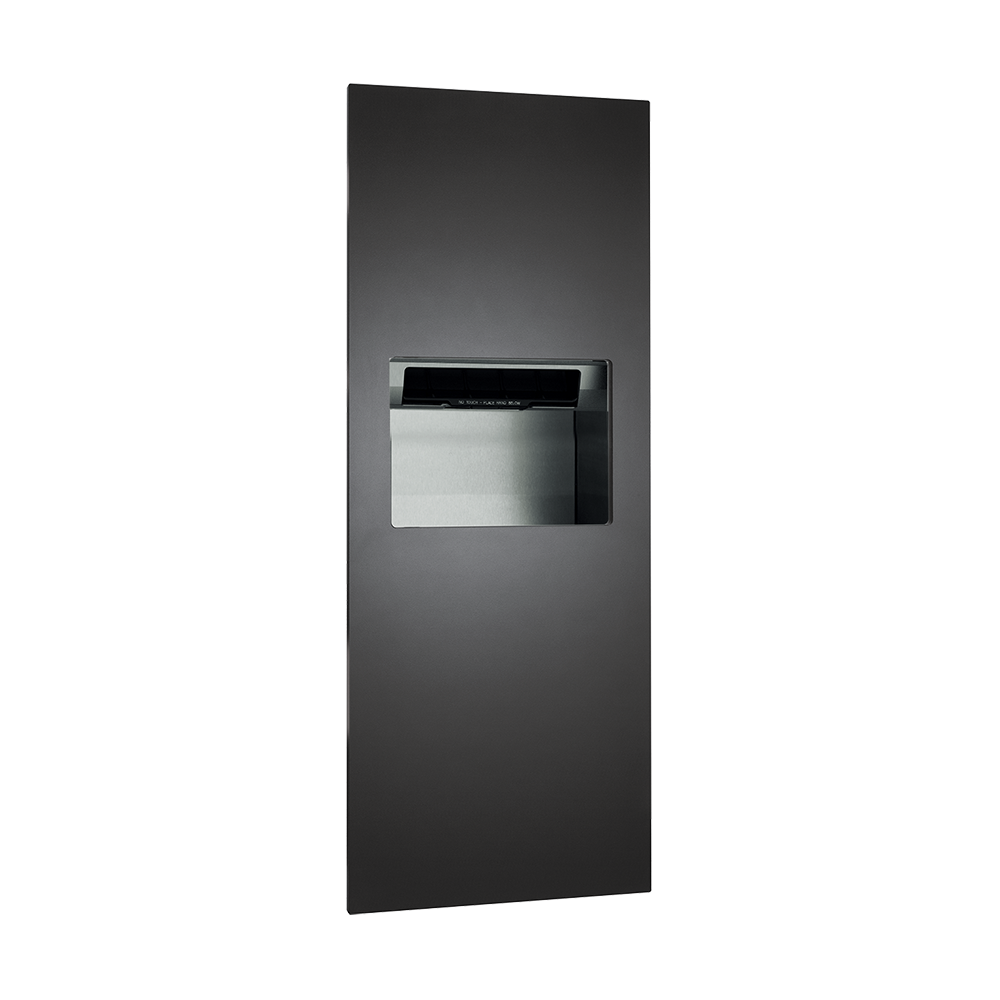

This sophisticated automatic paper towel dispenser and waste receptacle is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal. Proximity sensing no-touch unit holds and dispenses one 8" diameter [Ø203] x 8" wide [203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Dispenser is powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches. Waste receptacle has a capacity of 9.9 gallons (37.3 L) and is emptied manually. Note: ASI Piatto™ products are made to order and are not returnable.
| Shipping Weight | 60.3 lbs |
|---|---|
| Shipping Volume | 4.97 cu. ft. |
| Collection | PIATTO™ |
| Buy America Act | Compliant |
| Shipping Method | Ships via Truck |
