ASI
Plastic Laminate Toilet Partitions - Ceiling Hung
Loading...
ASI
Floor Stays Completely Clear for Easy Cleaning
ASI Global Partitions Plastic Laminate Moisture Guard™ partitions deliver the widest design selection of any partition material at the most accessible price point. Pilasters are suspended from the ceiling so the floor below stays completely clear — the easiest configuration to mop and maintain. Requires structural steel support above the ceiling, typically specified for new construction.

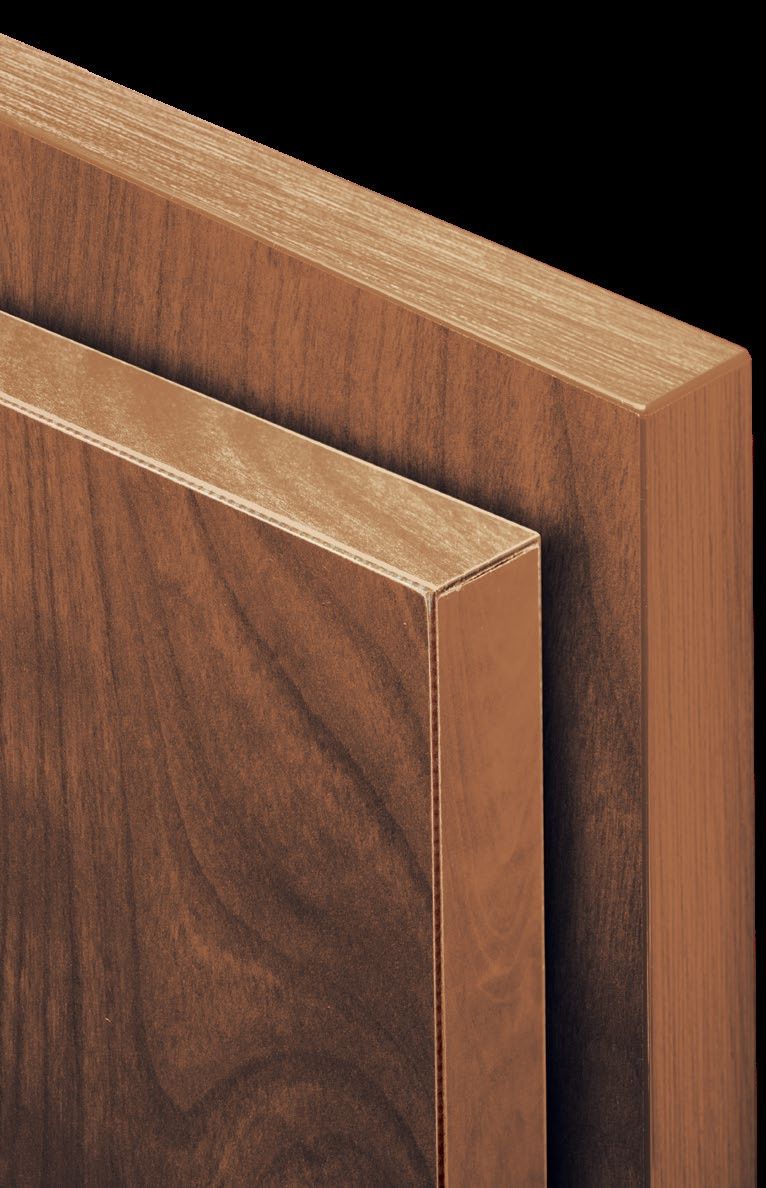

An exclusive fused edge banding creates a seamless beveled profile that eliminates the unsightly black edge lines found on legacy plastic laminate, and delivers 3× greater resistance to moisture and humidity than standard plastic laminate.
Every Moisture Guard™ component is engineered for high-traffic commercial restrooms, from the vertical-grade laminate face down to the stainless Easy Stall Shoe.
 Vertical-Grade Laminate High-pressure 0.050″ vertical-grade laminate face built for demanding commercial specifications. |  45# Density Particleboard Core Industrial 45-lb density core resists warping and keeps a flat, smooth surface. |  Wrap-Around Door Hinges Through-bolted wrap-around hinge brackets adjust to set a gravity self-close. |
 Easy Stall Shoe Snap-on Type-304 stainless shoe with concrete anchors (2,770 lb pull-out) speeds installation. Floor Anchored / Overhead Braced only. |  Vandal-Resistant Fasteners Theft- and tamper-resistant fastener heads used throughout the system. |  Emergency Access ADA-compliant slide latch lifts from outside the compartment for emergency access. |
Specify any of the following to match your facility's durability and finish requirements:
Starting at $475 per stall panel
The pricing listed is a starting price per stall panel based on a standard layout and is meant to show the price difference between material types. The final price will be determined by your specific configuration, dimensions, and selected options for your restroom.
Same Wilsonart palette as our Phenolic Core line — all colors available. ((D) indicates a directional woodgrain or linen pattern.)
 1010 Mission White |  4000 Almond |  4010 Sand |  1681 Cotton Cloth (D) |  9096 Taupe |  1841 White Ash (D) |  1150 Crisp Linen (D) |  3450 Fog |
 4707 Patine Bronze |  5013 Washi Paperfold |  5974 Green Felt |  6240 Liquid Glass |  4538 Casual Linen (D) |  5030 Satin Stainless (D) |  6320 Blue Felt |  9110 Wheat Strand (D) |
 1096 Carrara Bianco |  5107 Burnt Strand (D) |  9783 Antique Mango (D) |  3750 Gray Linen (D) |  9844 Aged Ash (D) |  9120 Afternoon Nap (D) |  8450 Smoke |  2100 Little Black Dress (D) |
 3003 Love Letters (D) |  4109 Soothing Pebble Beach (D) |  7010 Brittany Blue |  7318 Navy Graphix |  3000 Silver Gray |  3010 Dove Gray |  3300 Folkstone Celesta |  3713 Canyon Zephyr |
 3033 Handspun Pearl (D) |  3849 Windswept Pewter (D) |  3542 Storm Solidz |  3020 Graphite Graphix |  3035 Handspun Slate (D) |  3350 Smoke Quarstone |  2150 Graphite |  2000 Black |
 4036 Handspun Chestnut (D) |  4990 Flax Linen (D) |  9939 Mahogany (D) |  5993 Pewter Mesh (D) |  9550 Asian Night (D) |  9842 Weathered Ash (D) |  7954 Neo Walnut (D) |  9218 Kingswood Walnut (D) |
| Material | Plastic Laminate Moisture Guard™ (ASI Global Partitions) |
|---|---|
| Mounting Style | Ceiling Hung |
| Laminate | Vertical-grade, 0.050″ thickness |
| Core | 45# density particleboard with fused edge banding |
| Colors | 48 Wilsonart colors & patterns |
| Warranty | 5-Year limited (exclusive to Moisture Guard™) |
| Lead Time | 48-Hour Express eligible on stocked colors; 1–2 weeks standard |
| Hardware | Chrome, stainless, or vandal-resistant options |
Ready for an exact price on your restroom? Send us your layout and we'll return an itemized quote.
Get My Free QuoteASI
