Model # 7403-S  (SKU 10-7403-S)

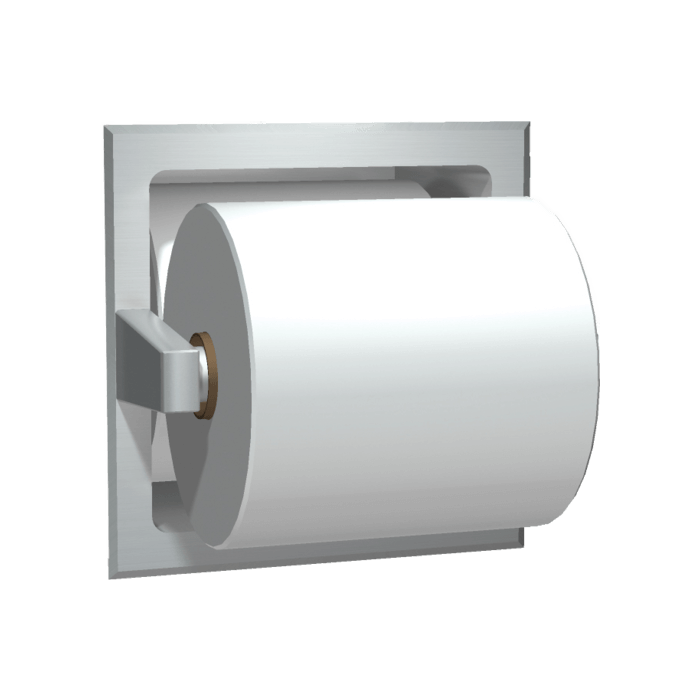

Product Dimensions: Overall Dimensions: 6-5⁄16" x 6-1⁄4" x 6-13⁄16" 160 x 160 x 173 mm From Finished Wall: 6-5⁄16" x 6-1⁄4" x 2-13⁄16" 160 x 160 x 51 mm Rough Wall Opening: 5-1⁄2" W x 5-1⁄2" H x 4" 140 x 140 x 102 Product Description: Satin Finish. Holds two (2) rolls and dispenses one (1) roll at a time of standard core roll toilet paper up to 5-1⁄8" (Ø130) diameter rolls. Box holds one (1) extra toilet paper roll in reserve. Spring-loaded roller is chrome plated high impact resistant ABS plastic and revolves freely. Reserve roll is protected from access until roll in-use is completely exhausted. Spring-loaded spindle holds roll until core is removed. All exposed surfaces are satin or bright finish as chosen by option and indicated by code suffix.

Product Specifications

Shipping Weight	1.9 lbs
Shipping Volume	0.05 cu. ft.
Category	TOILET TISSUE DISPENSERS
Buy America Act	Compliant

Downloads

• Technical Data Sheet (PDF)
