Model # 0345  (SKU 10-0345)

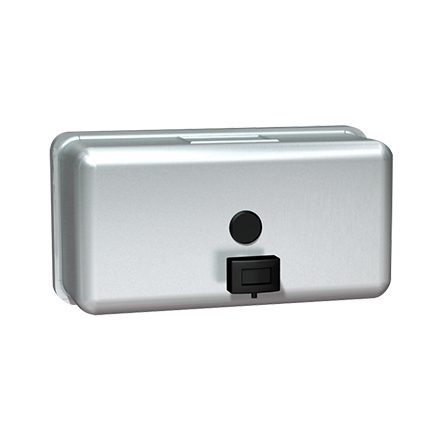

Product Dimensions: 8-3⁄16” x 4-13⁄16” x 3-15⁄16” 208 x 122 x 100 mm Spout Projection: 23⁄32" (18 mm) Product Description: 40 fl. oz. (1.2 L) capacity liquid soap dispenser in stainless steel; satin finish comes with an all purpose valve and a tamper-resistant refill indicator. Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open. Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually. Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used. Viscosity Range ( mPa·s or cP ): 100 - 3.5k pH Range: 5.5 ~ 8.5 A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

Product Specifications

Shipping Weight	2.0 lbs
Shipping Volume	0.15 cu. ft.
Category	SOAP DISPENSERS & HAND SANITIZER DISPENSERS
Buy America Act	Compliant
Stocking Status	Never Out

Downloads

• Technical Data Sheet (PDF)
