ASI
ASI

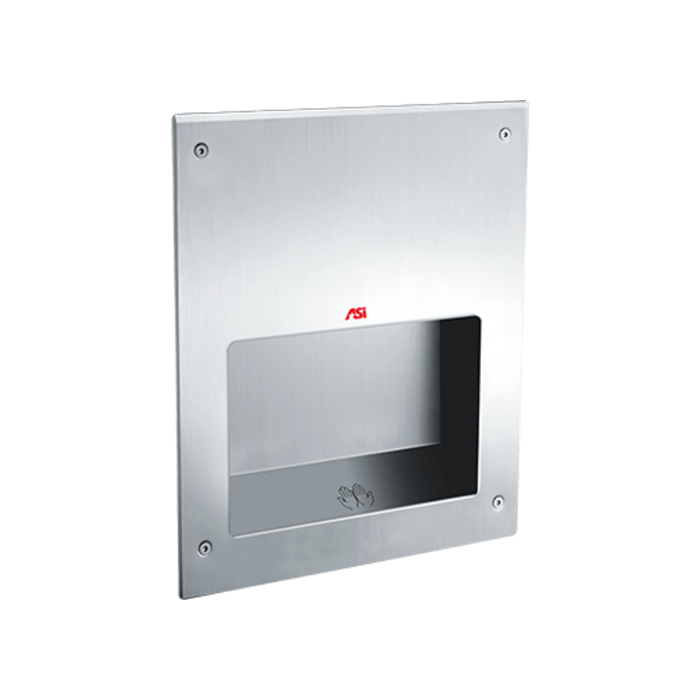

Model # 0198-MH-2 (SKU 10-0198-MH-2)
Product Dimensions: Overall Dimensions: 12-5⁄8" x 15-3⁄4" x 5-4/16" 320 x 400 x 140 mm Wall Opening: 11-7⁄8" x 14-3⁄4" x 5-1⁄8" 303 x 376 x 130 mm Product Features: Quick drying — less than 15 seconds Operates automatically using infrared sensor Auto-resetting thermostat 60-second automatic shut off Cover fabricated of heavy-duty, one-piece-formed stainless steel ADA compliant 5 year parts warranty Electric Details: Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings Voltage: 208-240VAC, 50/60 Hz. 0.84-1.0 kW Air Output: 68 CFM (102 m³/h) – Heat Temp: 131° F ± 5 @ 77° F (55° C ± 2.8 @ 25°C) ambient room temp. Output Air Speed: 201 mph (230 ft/s) [90 m/s {324 km/h}] Heater: 500 Watts Current: 10.4 Amps @ 120 VAC; 5.2 Amps @ 240 VAC Dry Time: Under 15 seconds Electric Details: Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings Voltage: 208-240VAC, 50/60 Hz. 0.84-1.0 kW Air Output: 68 CFM (102 m³/h) – Heat Temp: 131° F ± 5 @ 77° F (55° C ± 2.8 @ 25°C) ambient room temp. Output Air Speed: 201 mph (230 ft/s) [90 m/s {324 km/h}] Heater: 500 Watts Current: 10.4 Amps @ 120 VAC; 5.2 Amps @ 240 VAC Dry Time: Under 15 seconds Product Description: Anti-ligature dryer designed for Behavioral Health environments—angled top, welded corners and single tube exhaust prevent looping, tying off, wedging and prying. Tamper-resistant 18 gauge stainless steel cover, and flush pin-hex security screws.
| Shipping Weight | 19.2 lbs |
|---|---|
| Shipping Volume | 1.17 cu. ft. |
| Category | HIGH-SPEED HAND DRYERS - If no color specified, dryer is White |
| Buy America Act | Compliant |




ASI
Model # 0198-MH-2 (SKU 10-0198-MH-2)
Product Dimensions: Overall Dimensions: 12-5⁄8" x 15-3⁄4" x 5-4/16" 320 x 400 x 140 mm Wall Opening: 11-7⁄8" x 14-3⁄4" x 5-1⁄8" 303 x 376 x 130 mm Product Features: Quick drying — less than 15 seconds Operates automatically using infrared sensor Auto-resetting thermostat 60-second automatic shut off Cover fabricated of heavy-duty, one-piece-formed stainless steel ADA compliant 5 year parts warranty Electric Details: Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings Voltage: 208-240VAC, 50/60 Hz. 0.84-1.0 kW Air Output: 68 CFM (102 m³/h) – Heat Temp: 131° F ± 5 @ 77° F (55° C ± 2.8 @ 25°C) ambient room temp. Output Air Speed: 201 mph (230 ft/s) [90 m/s {324 km/h}] Heater: 500 Watts Current: 10.4 Amps @ 120 VAC; 5.2 Amps @ 240 VAC Dry Time: Under 15 seconds Electric Details: Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings Voltage: 208-240VAC, 50/60 Hz. 0.84-1.0 kW Air Output: 68 CFM (102 m³/h) – Heat Temp: 131° F ± 5 @ 77° F (55° C ± 2.8 @ 25°C) ambient room temp. Output Air Speed: 201 mph (230 ft/s) [90 m/s {324 km/h}] Heater: 500 Watts Current: 10.4 Amps @ 120 VAC; 5.2 Amps @ 240 VAC Dry Time: Under 15 seconds Product Description: Anti-ligature dryer designed for Behavioral Health environments—angled top, welded corners and single tube exhaust prevent looping, tying off, wedging and prying. Tamper-resistant 18 gauge stainless steel cover, and flush pin-hex security screws.
| Shipping Weight | 19.2 lbs |
|---|---|
| Shipping Volume | 1.17 cu. ft. |
| Category | HIGH-SPEED HAND DRYERS - If no color specified, dryer is White |
| Buy America Act | Compliant |
